Wireless Front & Rear OEM Style Parking 8 Sensors Set (SKU:02-FR58OEM)

A$599.00

Parksafe/Haodi Wireless OEM Look Parking Sensors

Unique Wireless 8 Sensors System for Front and Rear Parking (all in one set)

Very easy to install as no cables have to be run through the front firewall for a much easier, safer and faster installation.

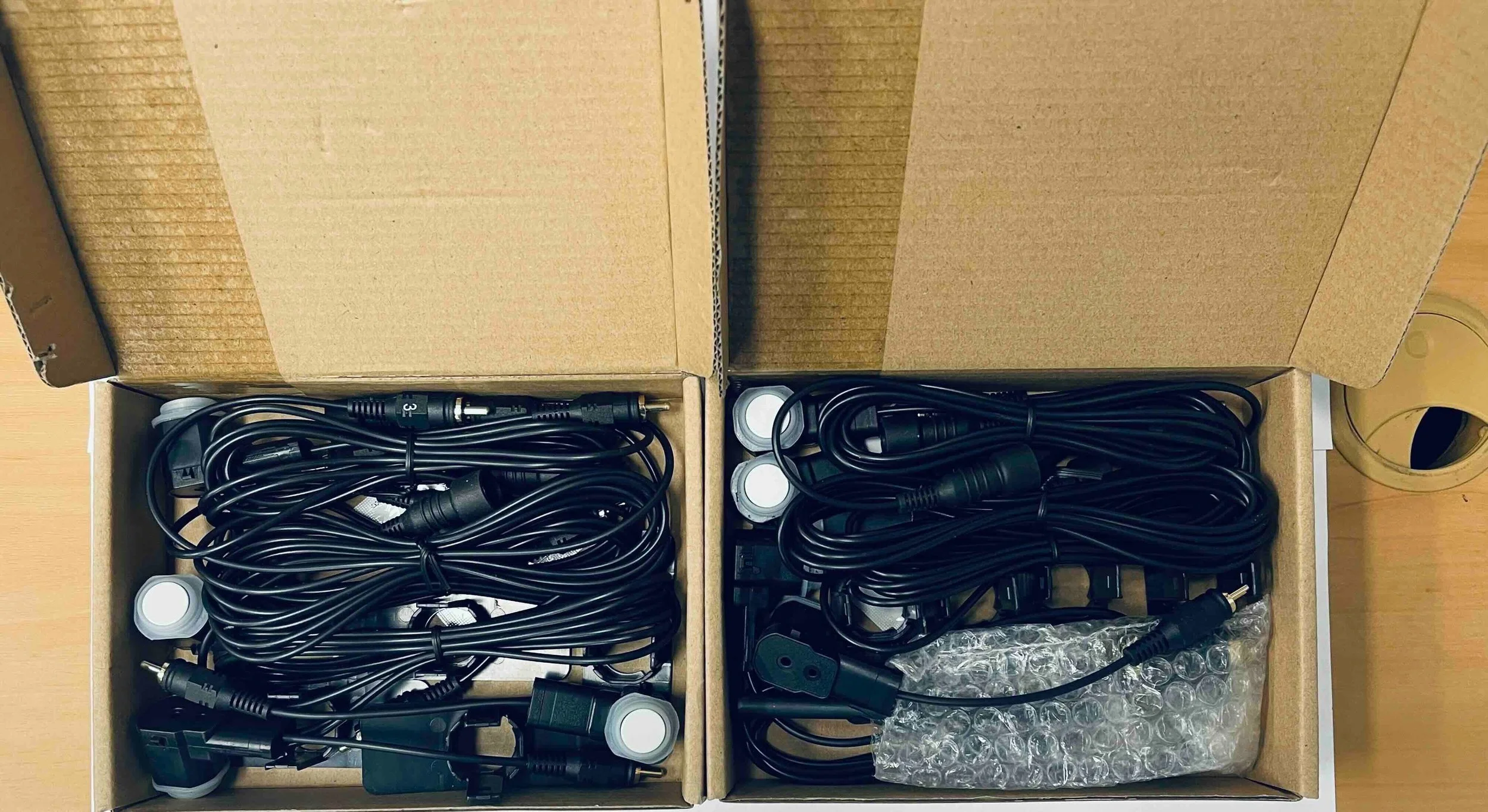

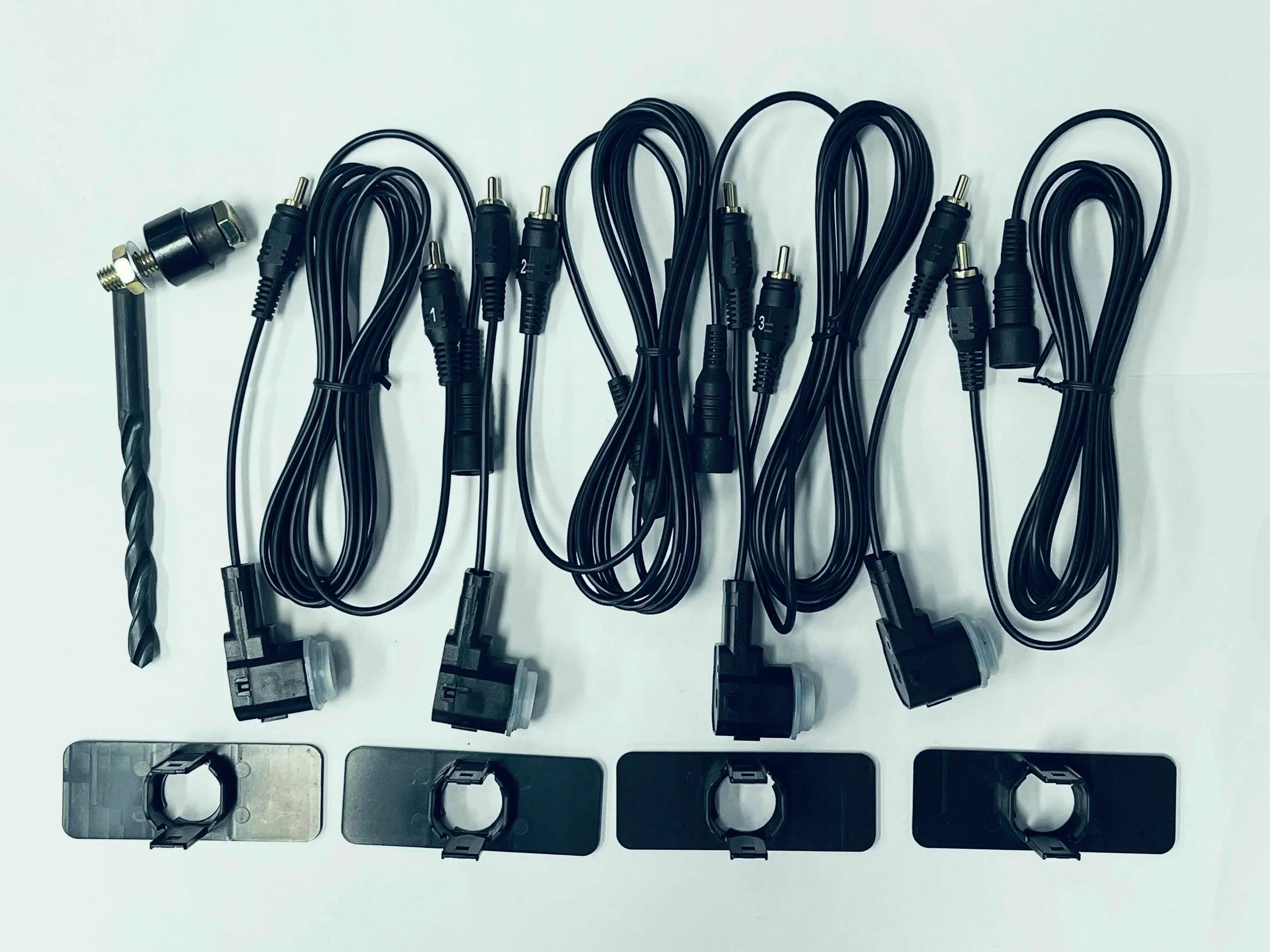

This wireless front or rear sensor kit includes:

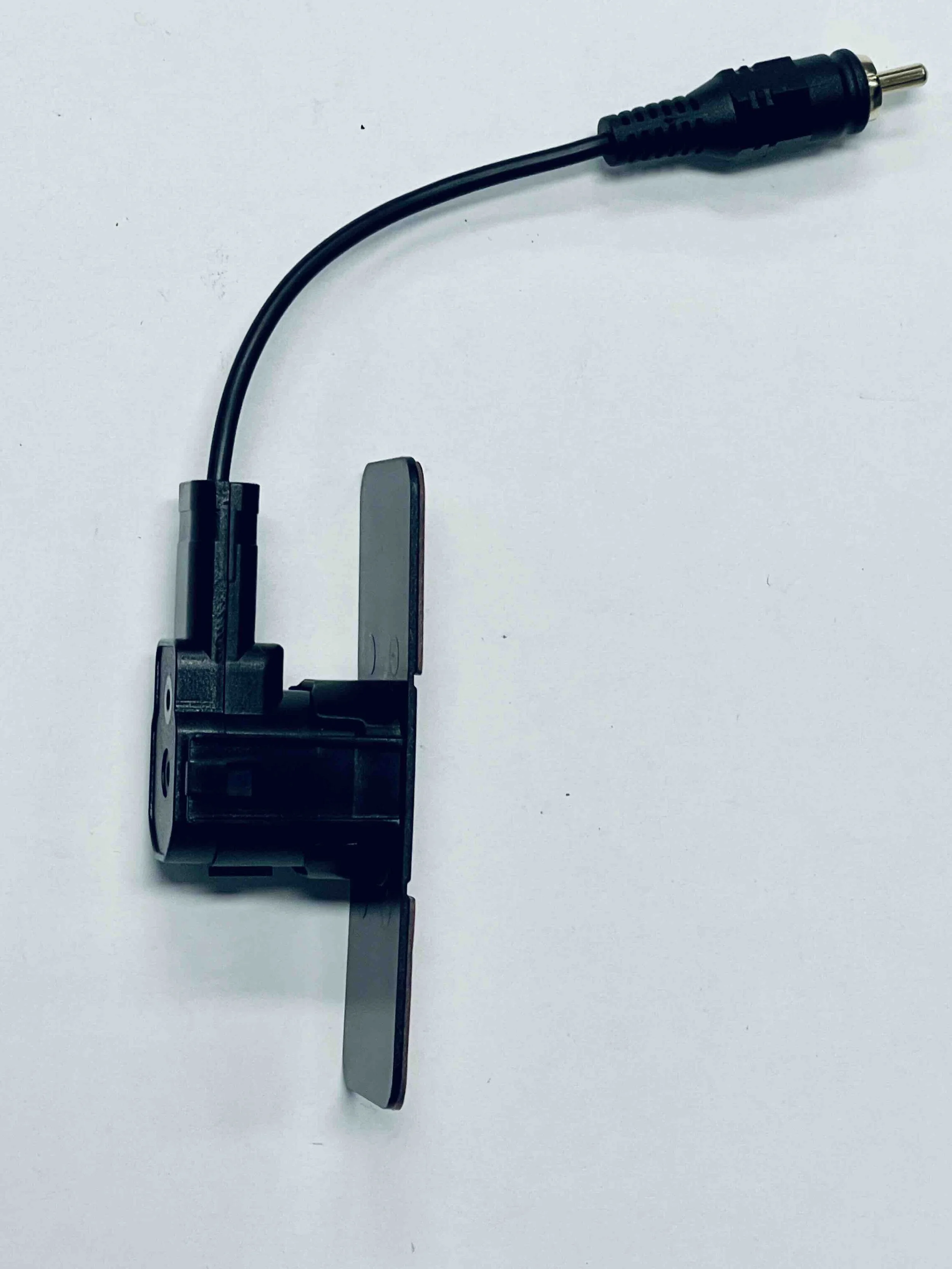

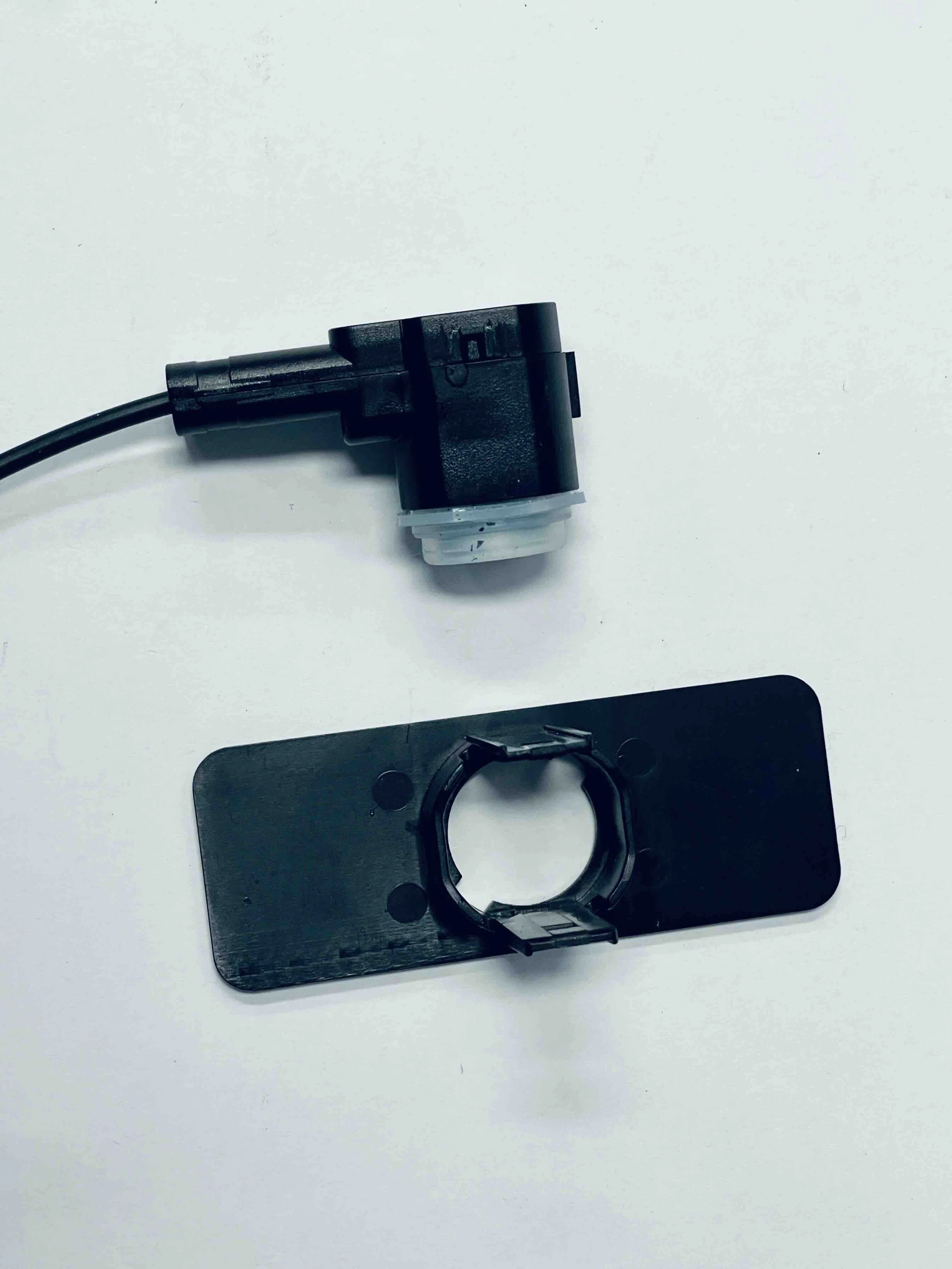

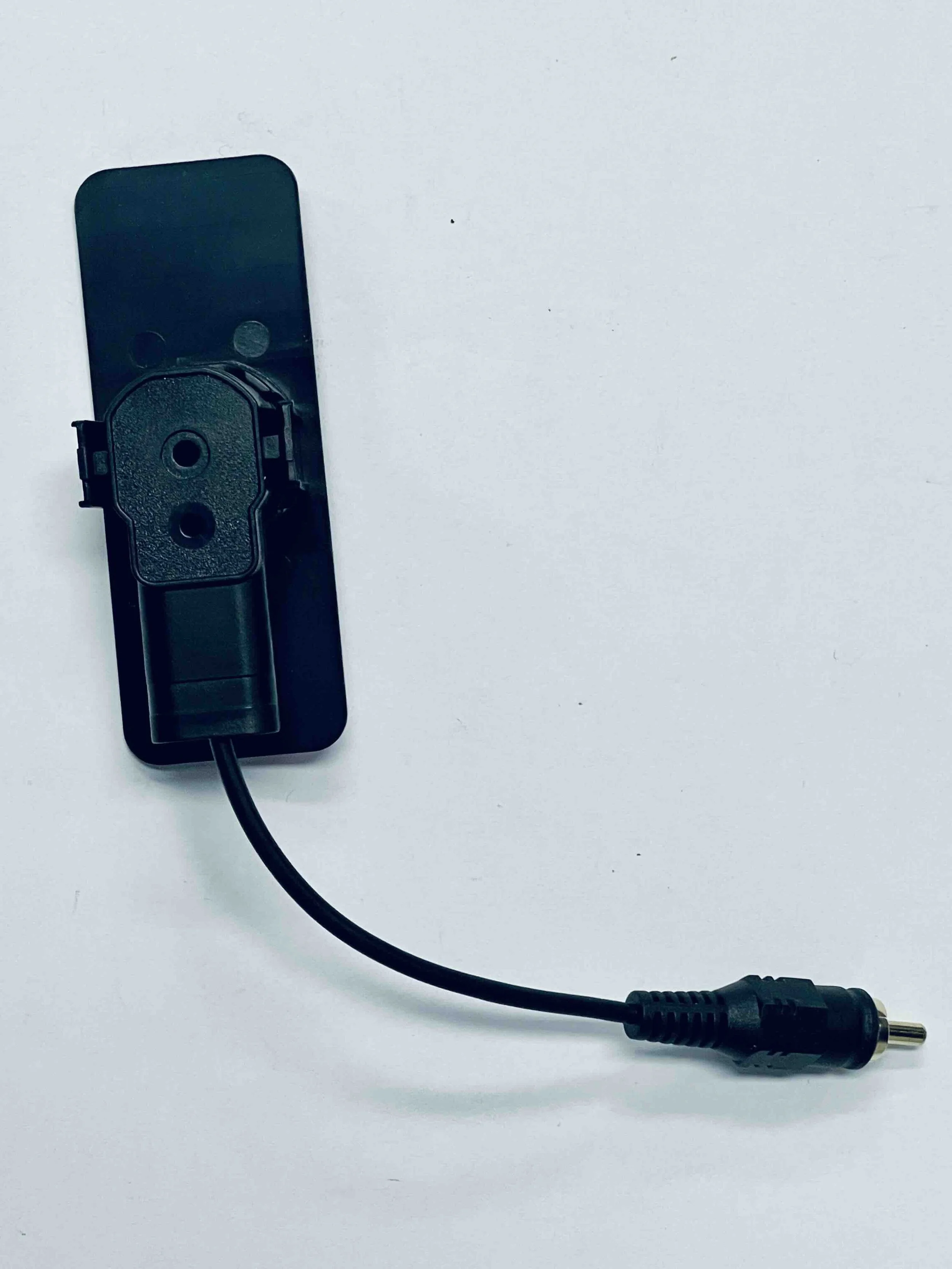

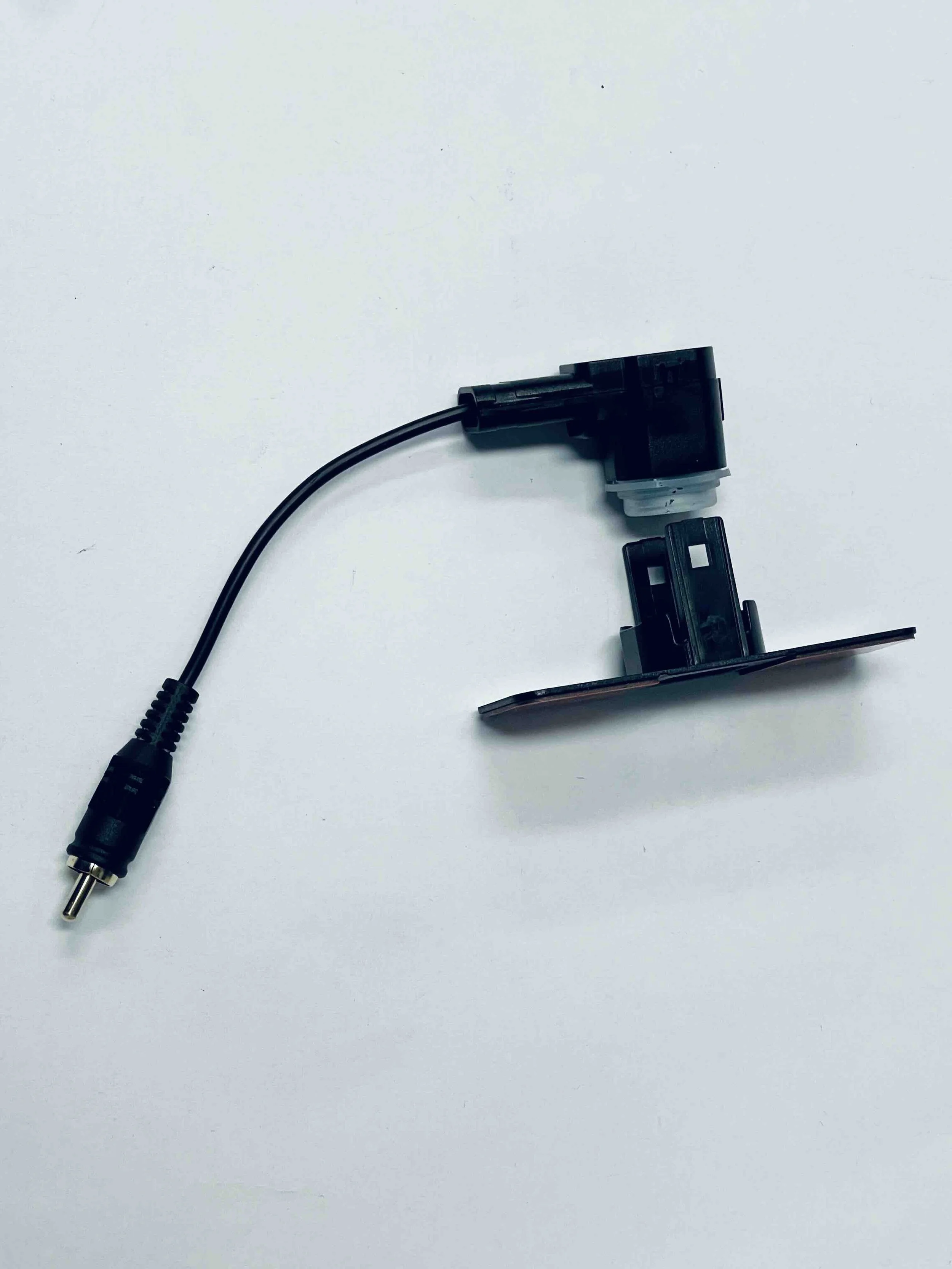

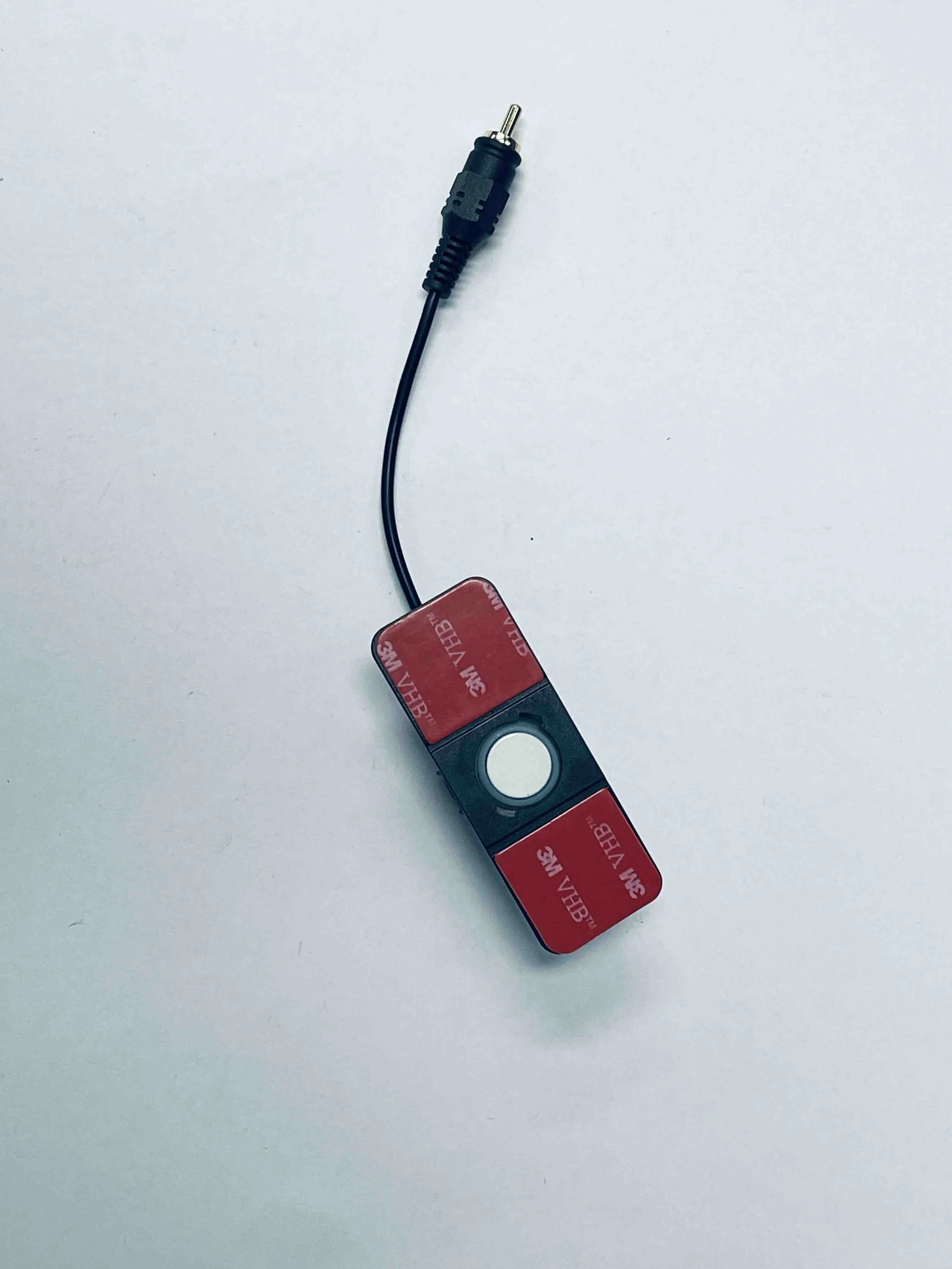

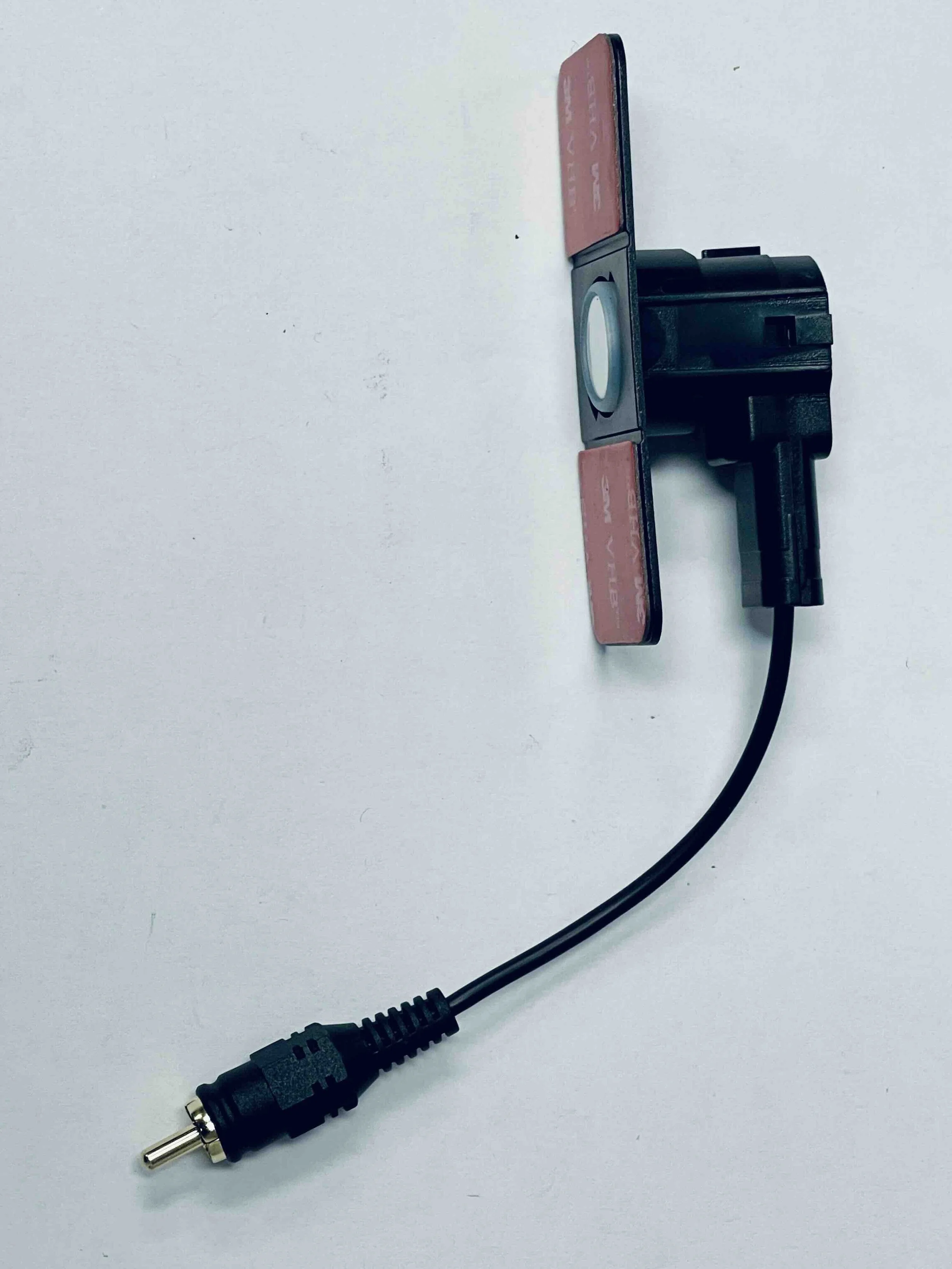

8 x Painted White plastic sensors with male RCA connectors

8 x Sensor cables with AV/RCA type plug-in joiners

1 x LCD colour display unit shows object distance and direction ,battery voltage and driving speed (GPS inside)

1 x Wireless waterproof VPC/ECU/> DC10-30V

> GPS on/off speed controlled auto switching (on at below 15 kph/off above 15 kph)

> Battery voltage display

> Adjustable buzzer with volume control

> On/off service switch

> Bumper bars require removal for this installation ( Professional Installation recommended)

> 5 years local Manufacturer Warranty & support

Instructions :

Mount the waterproof ECU/control modules in a suitable location away from excessive heat and the battery.

  1. Select and mark the most suitable position for installing the sensors (not too close to the licence plate and not too low to the ground) into the front bumper (as per the instructions) and drill the 4 holes with a hole cutting saw.

    After installing the 8 sensors, run the cables back to the control module and plug in taking note of the correct labelled positions.

    Connect the ground and power wires directly to the battery or to a direct power source

    Move in to the cabin and find a suitable location for the display unit. First connect the ground wire to the car body/chassis and the power wire to a fused accessory line at the fuse box or behind the cigar lighter .
