Hyundai iX35 Car-play/Multimedia Upgrade 2009-2015 (PN:17-AM9035K)

Hyundai iX35 Carplay-Multimedia Upgrade 2009-15Hyundai iX35 Carplay-Multimedia Upgrade

AERPRO > 7 INCH COMPLETE KIT

The Aerpro AM9035K package offers a comprehensive head unit upgrade solution that includes an Aerpro AM7X Double DIN 7" Mechless AV Receiver, a Vehicle Specific Installation Kit and a 720P AHD universal reverse camera. Designed specifically for Hyundai iX35 2009-2015 vehicles, this package comes with all the necessary parts to complete the installation and retain important features such as steering wheel controls.

AERPRO > 7 INCH COMPLETE KITS > AERPRO COMPLETE KITSBarcode9317114947857Inner/OuterInner: 0 | Outer: 0Description

The Aerpro AM9035K package offers a comprehensive head unit upgrade solution that includes an Aerpro AM7X Double DIN 7" Mechless AV Receiver, a Vehicle Specific Installation Kit and a 720P AHD universal reverse camera. Designed specifically for Hyundai iX35 2009-2015 vehicles, this package comes with all the necessary parts to complete the installation and retain important features such as steering wheel controls.

Vehicle Specific Installation Kit

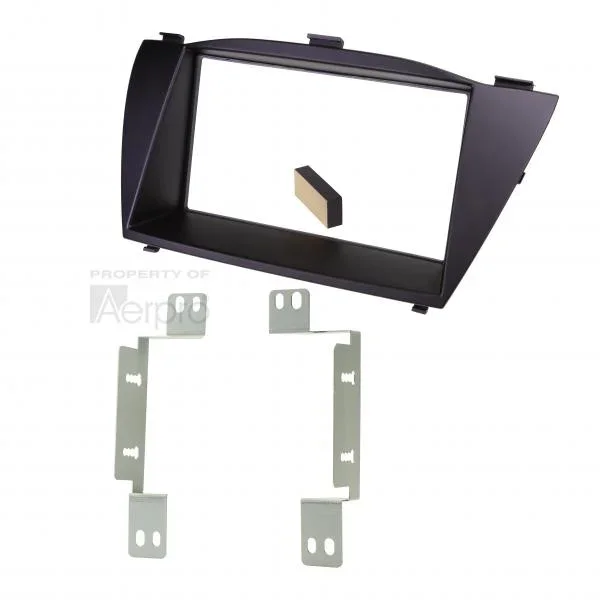

The Aerpro Vehicle Specific Installation Kit is designed to provide a complete solution for upgrading the head unit in Hyundai iX35 2009-2015 vehicles. The kit contains all necessary components for a successful double din installation, including a black facia kit, metal mounting brackets, steering wheel control interface and universal SWC patch lead.

720P AHD Surface Mount Camera

The Aerpro 720P AHD Surface Mount Camera produces high definition picture quality. The camera can be used as a front, rear or reverse camera. It features a 150 degree field of view, optional parking guidelines and is IP67 rated. The camera is designed to mount on a flat surface and has an adjustable bracket to enable angle adjustment.

mportant Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.

• Does not suit Series 2 models with factory navigation radio (2013-2015)

• This head unit is sold as a kit which includes:

  • Aerpro AM7X 7" Multimedia Receiver with Wireless Carplay and Android Auto

  • Vehicle Specific Installation Kit

  • 720P AHD Surface Mount Camera

  • Aerpro AM7X Specifications:

    • LCD Display:

      • Size: 7"

      • Resolution: 1024x600

      • Touch Screen: Capacitive (G+G)

    • System Specifications:

      • OS System / CPU: Linux 3.4.5 / SPHE8368U

      • RAM / Flash Memory: 128MB / 256MB

    • DIN Size: 2 DIN Short Body

    • Power Output

      • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W

      • MAX Power (4 Ohm): 4CH x 45W

    • Media Playback: MP3 / MP4 / AAC / FLAC / Xvid

    • Device Ports

      • USB (Rear) Playback Formats: CPAA & Media

      • USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A

      • USB MAX Capability: FAT32_32GB

    • Aux Inputs / Outputs:

      • Rear A/V Input (RCA Type - 3pcs): Yes

      • Reverse Camera Input: Yes (720P AHD Compatible)

      • Second Camera Input: Yes (720P AHD Compatible)

    • Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)

    • Bluetooth:

      • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)

      • Bluetooth Version: V4.2+EDR

      • Microphone: External Microphone

      • ID3 Tag/Information (Artist, Album, Song): Yes

      • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6

    • Tuner:

      • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)

      • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)

      • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)

      • RDS: Yes

      • FM Antenna Connector Impedance: 50 Ohm

      • FM Tuner Connector: Motorola

    • RCA Preamp Outputs:

      • RCA Preamp Output: 2-Pair (Front / Rear)

      • Subwoofer RCA Output: Yes

      • Subwoofer Level Control: Yes

      • Preamp Voltage (1.2,2,4,5,6): 4V p-p

    • Tone Control:

      • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)

      • Loudness: Yes

      • LPF - Frequencies (Sub): Yes

      • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft

    • Other Features:

      • Steering Wheel Control: Yes, with Aerpro SWC Adaptor

      • OSD Language: English

      • LED Colour (Buttons / Keys): White

    • Accessories:

      • Power Harness: Yes with ISO

      • AV-In Cable (RCA with Audio L/R, Video In): Yes

      • Reverse Camera Input: Yes

      • 4.2CH Audio Out Cable: Yes

      • External Microphone: Included

      • Vehicle Specific Installation Kit Specifications:

        • Inclusions:

          • Facia Kit (Black)

          • Steering Wheel Control Interface

          • Universal Patch Lead

        AHD Camera Specifications:

        • Inclusions:

          • 720P AHD Surface Mount Camera (wired)

          • 6m of Video Cable (RCA) with in-line Reverse Trigger

        • Mount Type: Surface Mount

        • Camera Type: Front, Rear Or Reverse

        • Image Sensor: Sony 225, 1/3 CMOS AHD

        • Lens Angle 150 Degree

        Important Information:

        • Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.

        • Does not suit Series 2 models with factory navigation radio (2013-2015)

        • This head unit is sold as a kit which includes:

          • Aerpro AM7X 7" Multimedia Receiver with Wireless CarPlay and Android Auto

          • Vehicle Specific Installation Kit

          • 720P AHD Surface Mount Camera

          • Vehicle Specific Installation Kit Specifications:

            • Inclusions:

              • Facia Kit (Black)

              • Steering Wheel Control Interface

              • Universal Patch Lead

            AHD Camera Specifications:

            • Inclusions:

              • 720P AHD Surface Mount Camera (wired)

              • 6m of Video Cable (RCA) with in-line Reverse Trigger

            • Mount Type: Surface Mount

            • Camera Type: Front, Rear Or Reverse

            • Image Sensor: Sony 225, 1/3 CMOS AHD

            • Lens Angle 150 Degree

            Important Information:

            • Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.

            • Does not suit Series 2 models with factory navigation radio (2013-2015)

            • This head unit is sold as a kit which includes:

              • Aerpro AM7X 7" Multimedia Receiver with Wireless CarPlay and Android Auto

              • Vehicle Specific Installation Kit

              • 720P AHD Surface Mount Camera

              • • Hyundai iX35 2009-2013 LM1, LM2

                • Hyundai iX35 2013-2015 Series 2

                Features

                • Includes all the parts required to complete the installation

                • Retains important vehicle features including steering wheel controls when applicable

                • 7" Capacitive touch display

                • Works with Apple CarPlay (wireless and wired)

                • Supports Android Auto (wireless and wired)

                • Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)

                • AM / FM Tuner with RDS & presets (18FM/12AM)

                • Dual rear USB inputs (1.5A + 1.5A max charging)

                • Dual camera input with 1 Aerpro 720P AHD Camera included

                • Rear A/V input (RCA)

                • 4V / 6CH RCA Preout

                • MP3 / AAC / FLAC / MPEG 1,2,4 Media formats

                • 8 Band graphic EQ

                • 8 EQ Presets

                • Subwoofer level control

                • 45W x 4 Max built-in amplifier

                • Shallow 2-DIN chassis mounting design

                • External microphone included
