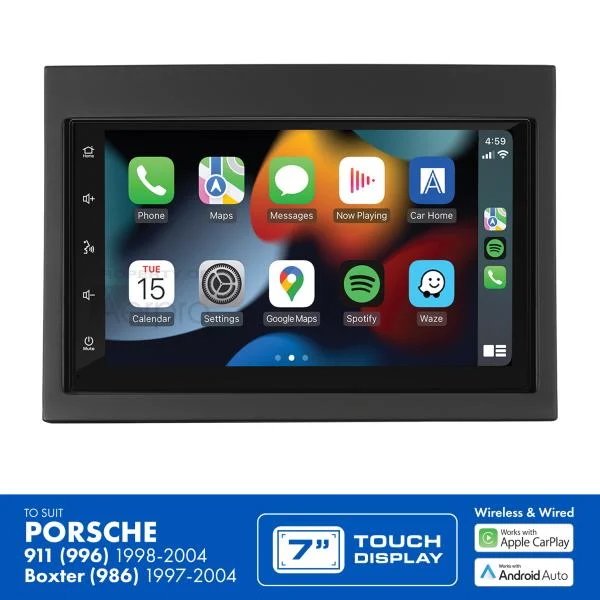

Porsche 996 2 Din 7" Head Unit with CarPlay (SKU: 17-AM8290K)

Porsche 996 -911 & 986 Boxster/Cayman 1998-2004 (SKU: 17-AM8290K)

The Aerpro AM8290K package offers a comprehensive head unit upgrade solution that includes an Aerpro AM7X Double DIN 7" Mechless AV Receiver, a Vehicle Specific Installation Kit and a 720P AHD universal reverse camera. Designed for various Porsche vehicles, this package comes with all the necessary parts to complete the installation and retain important features (Not suitable for models with Bose Amplifier)

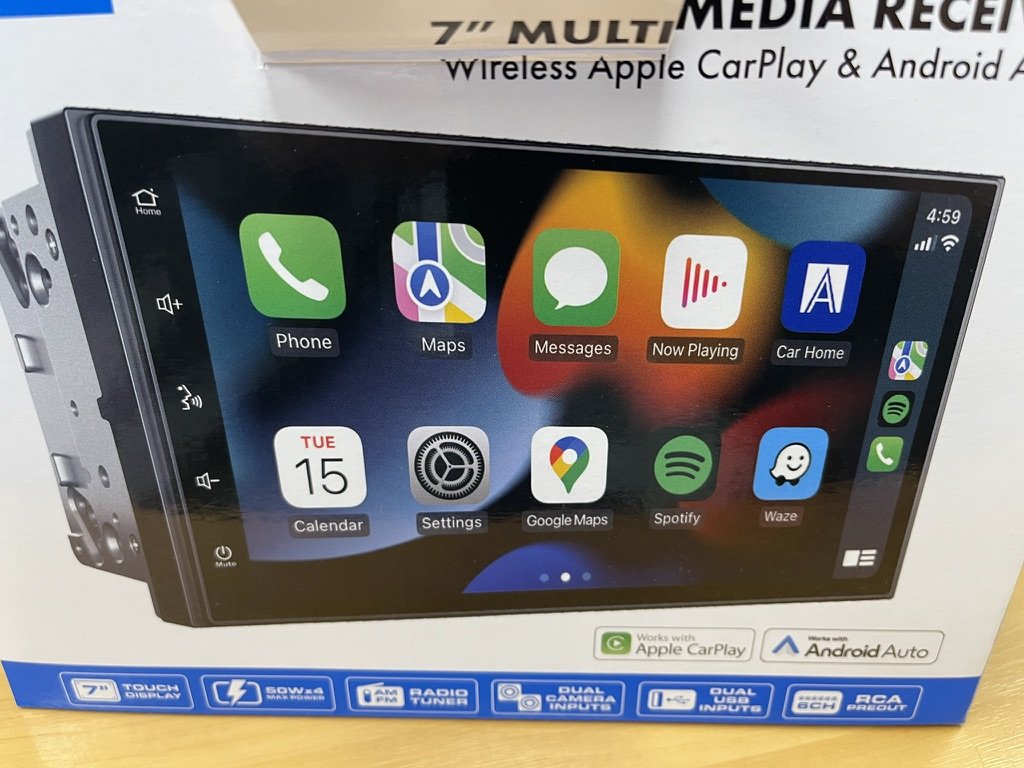

Aerpro AM7X 7" Multimedia Receiver with Wireless CarPlay and Android Auto

The Aerpro AM7X Multimedia Receiver with Wireless Apple CarPlay and Android Auto features a large 7" capacitive touch screen display. The built-in Bluetooth enables hands-free phone calls and wireless audio streaming and the included external microphone provides crystal clear communications. It has a rear USB input which works with Apple CarPlay and Android Auto, as well as a built in AM/FM tuner with RDS and presets. Sound quality is superb with a built in 45W x 4 amplifier, 8 band graphic EQ and time alignment capabilities for precise sound adjustment. If more sound is desired, an amplifier can be added to the system via the 4V/5CH RCA preouts (front + rear + subwoofer). The unit is OEM steering wheel remote ready and has dual reverse camera inputs (720P AHD compatible).

Vehicle Specific Installation Kit

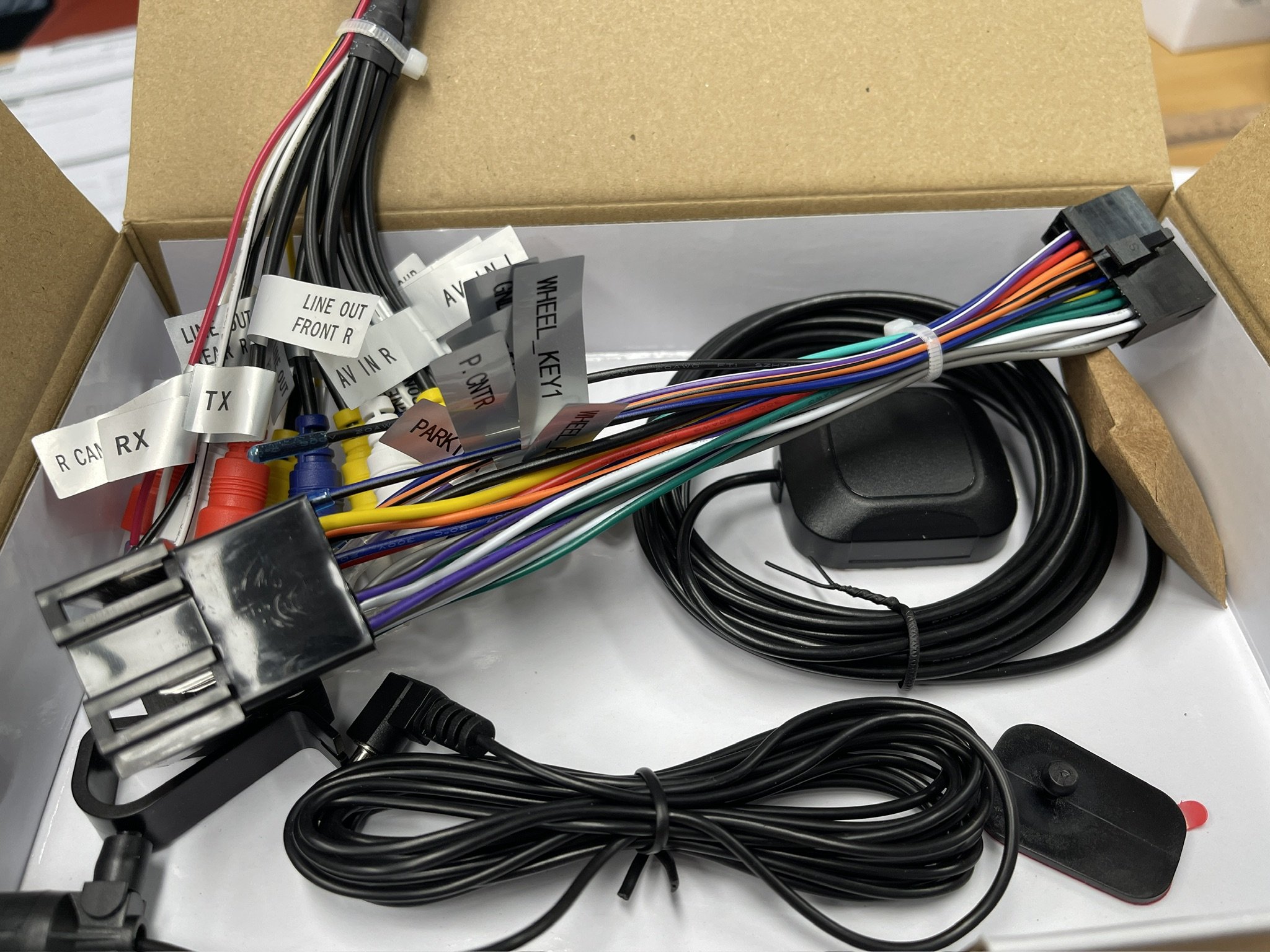

The Aerpro Vehicle Specific Installation Kit is designed to provide a complete solution for upgrading the head unit in various Porsche models. The kit contains all necessary components for a successful double din installation, including a black facia kit, plastic mounting brackets, steering wheel control interface, antenna adapter, amplifier adapter harness and universal SWC patch lead

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.

• Some amplified vehicles require amplifier trigger wire to be manually connected.

• This head unit is sold as a kit which includes:

  • Aerpro AM7X 7" Multimedia Receiver with Wireless Carplay and Android Auto

  • Vehicle Specific Installation Kit

  • 720P AHD Surface Mount Camera

• Includes all the parts required to complete the installation

• Retains important vehicle features including steering wheel controls and factory amplifier when applicable

• Subwoofer level control

• 45W x 4 Max built-in amplifier

• Shallow 2-DIN chassis mounting design

• External microphone included

Aerpro AM7X Specifications:

• LCD Display:

  • Size: 7"

  • Resolution: 1024x600

  • Touch Screen: Capacitive (G+G)

• System Specifications:

  • OS System / CPU: Linux 3.4.5 / SPHE8368U

  • RAM / Flash Memory: 128MB / 256MB

• DIN Size: 2 DIN Short Body

• Power Output

  • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W

  • MAX Power (4 Ohm): 4CH x 45W

• Media Playback: MP3 / MP4 / AAC / FLAC / Xvid

• Device Ports

  • USB (Rear) Playback Formats: CPAA & Media

  • USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A

  • USB MAX Capability: FAT32_32GB

• Aux Inputs / Outputs:

  • Rear A/V Input (RCA Type - 3pcs): Yes

  • Reverse Camera Input: Yes (720P AHD Compatible)

  • Second Camera Input: Yes (720P AHD Compatible)

• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)

• Bluetooth:

  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)

  • Bluetooth Version: V4.2+EDR

  • Microphone: External Microphone

  • ID3 Tag/Information (Artist, Album, Song): Yes

  • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6

• Tuner:

  • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)

  • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)

  • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)

  • RDS: Yes

  • FM Antenna Connector Impedance: 50 Ohm

  • FM Tuner Connector: Motorola

• RCA Preamp Outputs:

  • RCA Preamp Output: 2-Pair (Front / Rear)

  • Subwoofer RCA Output: Yes

  • Subwoofer Level Control: Yes

  • Preamp Voltage (1.2,2,4,5,6): 4V p-p

• Tone Control:

  • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)

  • Loudness: Yes

  • LPF - Frequencies (Sub): Yes

  • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft

• Other Features:

  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor

  • OSD Language: English

  • LED Colour (Buttons / Keys): White

• Accessories:

  • Power Harness: Yes with ISO

  • AV-In Cable (RCA with Audio L/R, Video In): Yes

  • Reverse Camera Input: Yes

  • 4.2CH Audio Out Cable: Yes

  • External Microphone: Included

Vehicle Specific Installation Kit Specifications:

• Inclusions:

  • Facia Kit (Black)

  • Steering Wheel Control Interface

  • Universal Patch Lead

AHD Camera Specifications:

• Inclusions:

  • 720P AHD Surface Mount Camera (wired)

  • 6m of Video Cable (RCA) with in-line Reverse Trigger

• Mount Type: Surface Mount

• Camera Type: Front, Rear Or Reverse

• Image Sensor: Sony 225, 1/3 CMOS AHD

• Lens Angle 150 Degree

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.

• Some amplified vehicles require amplifier trigger wire to be manually connected.

• This head unit is sold as a kit which includes:

  • Aerpro AM7X 7" Multimedia Receiver with Wireless CarPlay and Android Auto

  • Vehicle Specific Installation Kit
